Introduction
In modern manufacturing, precision is not a luxury—it’s a necessity. Industries such as automotive, aerospace, and heavy engineering depend on accurate tube bending to ensure structural integrity and performance. This is where high-quality tube bending tooling plays a crucial role.
Why Precision Matters
Tube bending involves multiple variables such as:
- Outside Diameter (OD)
- Wall Thickness
- Center Line Radius (CLR)
- Material Type
- Required Bend Quality
Even a minor deviation can lead to:
- Ovality issues
- Wall thinning
- Structural weakness
Precision tooling ensures consistency, reduces rejection rates, and improves overall product reliability.

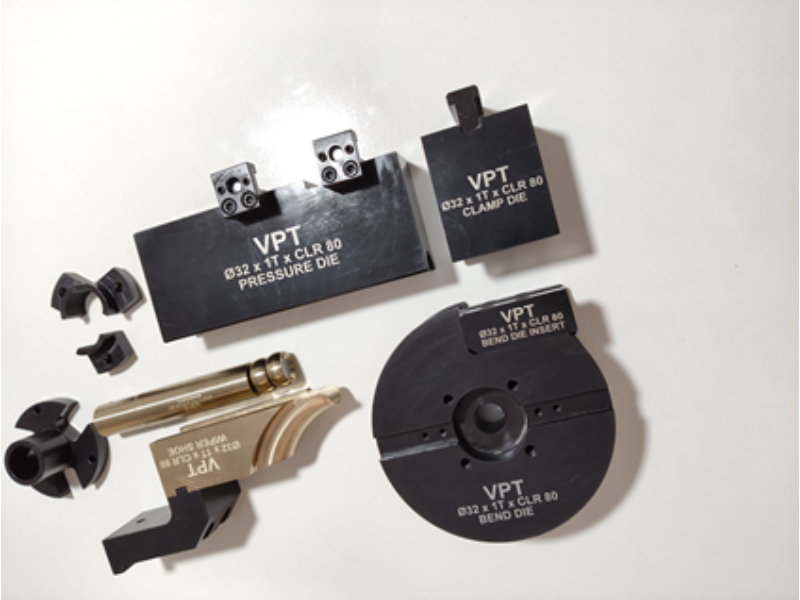

Key Tooling Components
A complete tube bending setup includes:
- Bend Dies
- Mandrels
- Wiper Dies
- Mandrel Links
- Fixtures and Assemblies
Each component must work in perfect harmony to achieve the desired output.
Tool Life & Efficiency
One of the biggest mistakes in production is compensating for worn-out tools by adjusting other components. This leads to:
- Reduced tool life
- Poor product quality
- Increased costs
Instead, maintaining proper tooling compatibility and timely replacement ensures long-term efficiency.
Conclusion
Investing in high-precision tooling not only improves product quality but also reduces total cost of ownership. Businesses that prioritize precision gain a strong competitive advantage in manufacturing.
